solar panel kit and 300w 200w 100w flexible solar panels 12v 24v high efficiency battery charger module
$100.99 – $399.99
Free Shiping
Easy Return
Secure Checkout
This product we set up warehouse in Spain, Czech Republic and Belgium，When you buy it,if you are in EU,we will ship to your country and it will be fast delivery.
However，
the zip code in Spain that starts with 35, 38, 51, 52.
the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain or Belgium.we will not ship to above zone,please not place order with above address,thanks.
Purchase Notes:

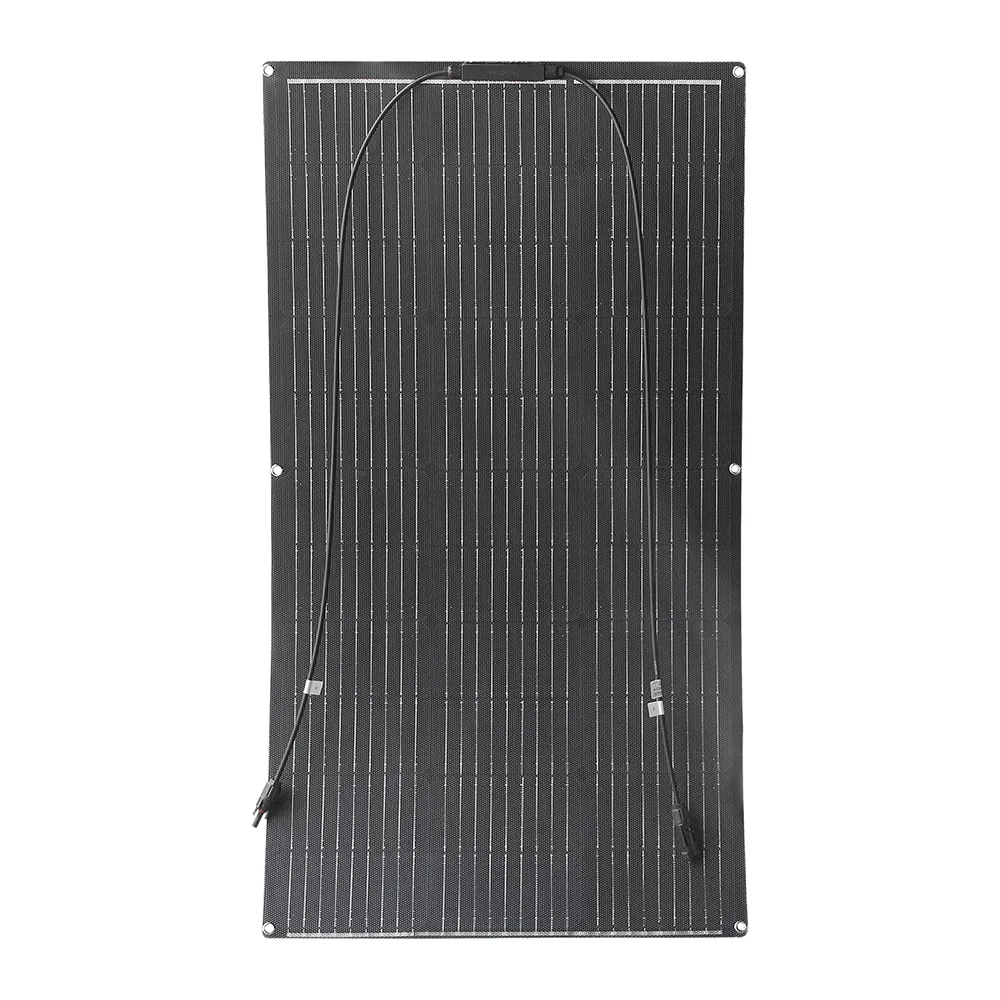

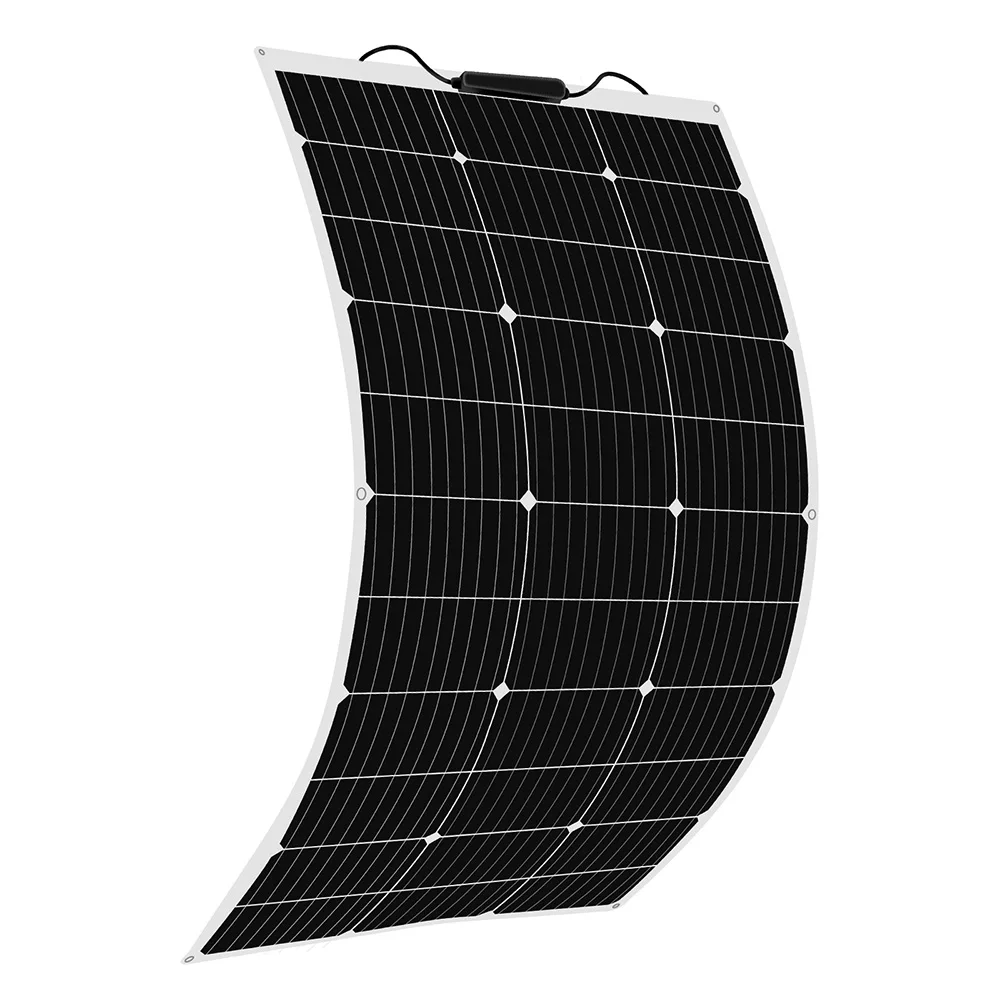

PET solar panel 100w:
Electrical Characteristics
Max Power 100 W
Max Power voltage 18.18 V
Max Power Current 5.5 A
Open Circuit Voltage 21.8 V
Short Circuit Current 5.83 A
Number of cells in Series 33
Cell size 157X157 mm
Mechanical Characteristics

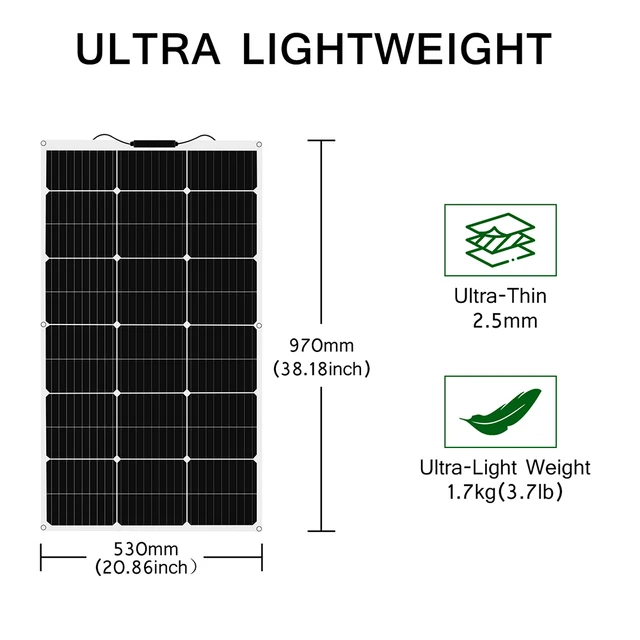

Dimension 970X530X2.5mm
Weight 1.6kg（±0.1kg）
Cable 0.9 meter 2X2.5mm
Thermal Characteristics
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
NOTC 47℃+/-2℃
Operating Temperature -20℃ – +65℃
Solar panel packing list

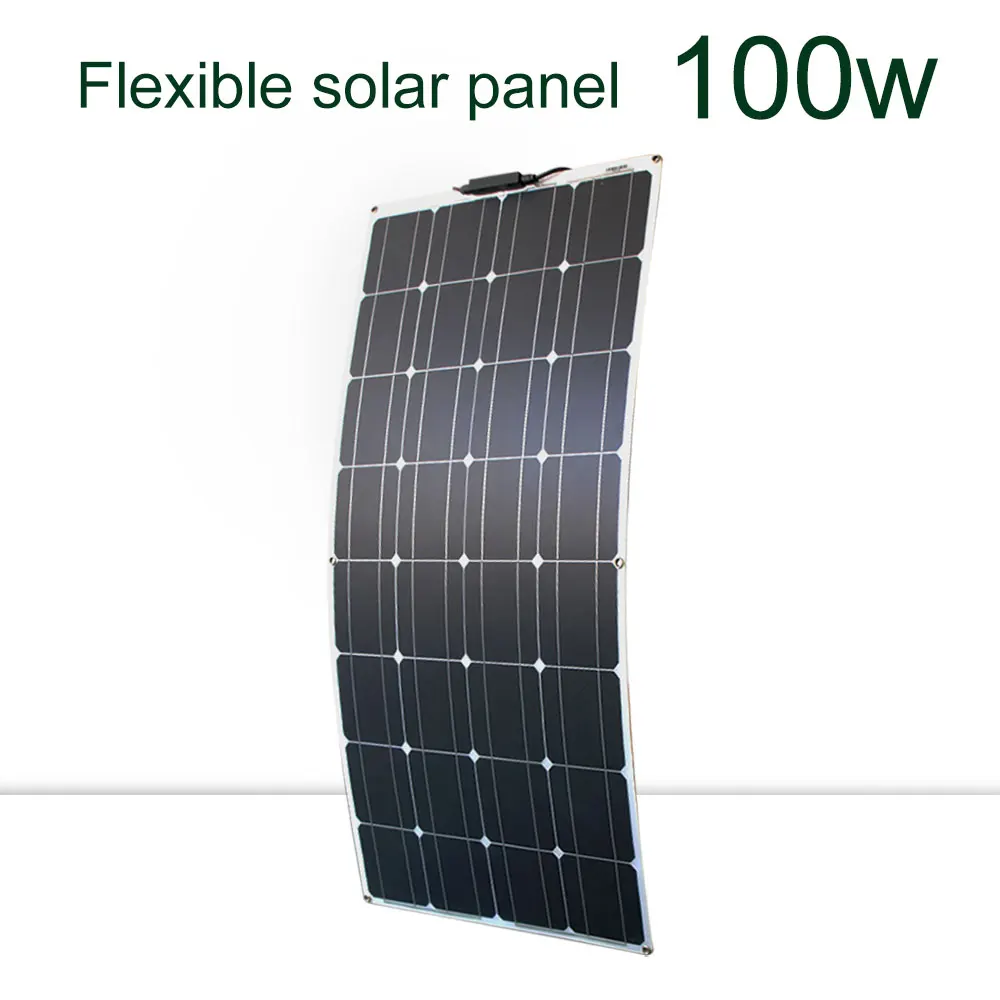

100w solar panel= 1pcs 100w 12v flexible solar panel（solar panel only）

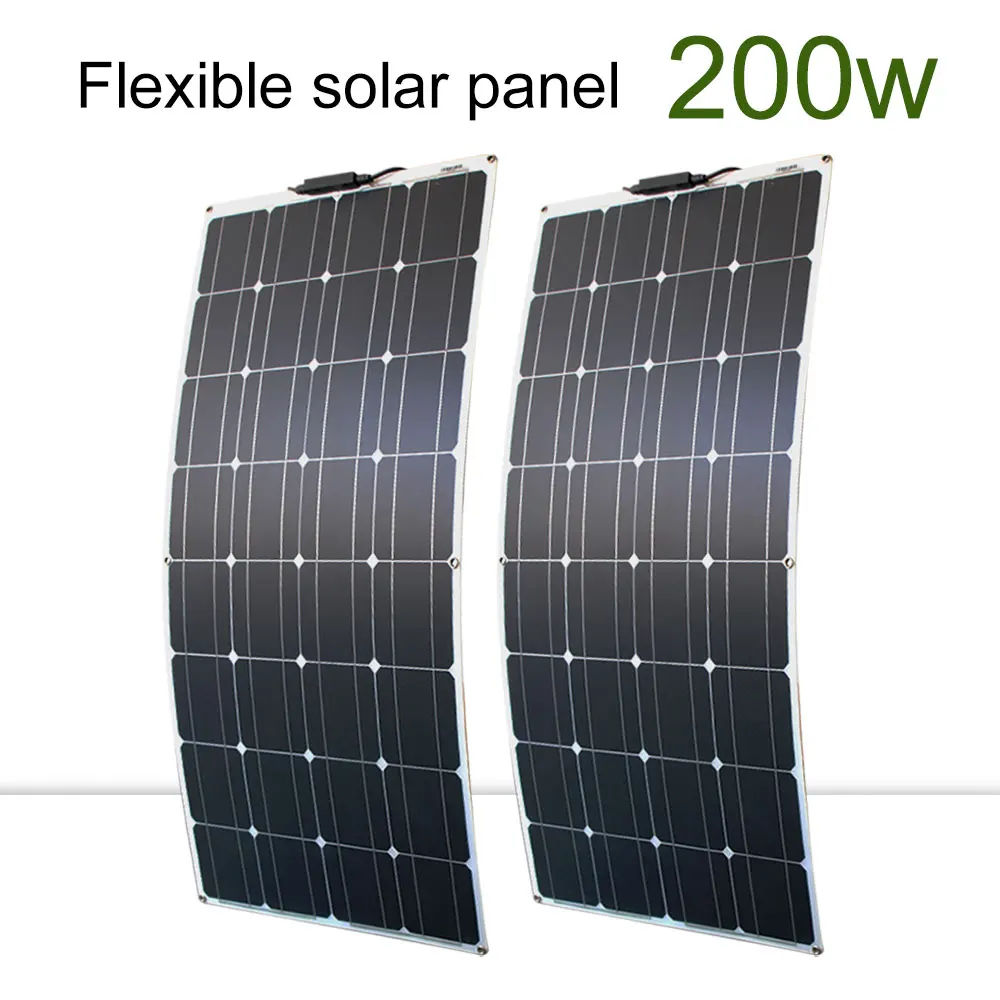

200w solar panel= 2pcs 100w 12v flexible solar panels（solar panel only）

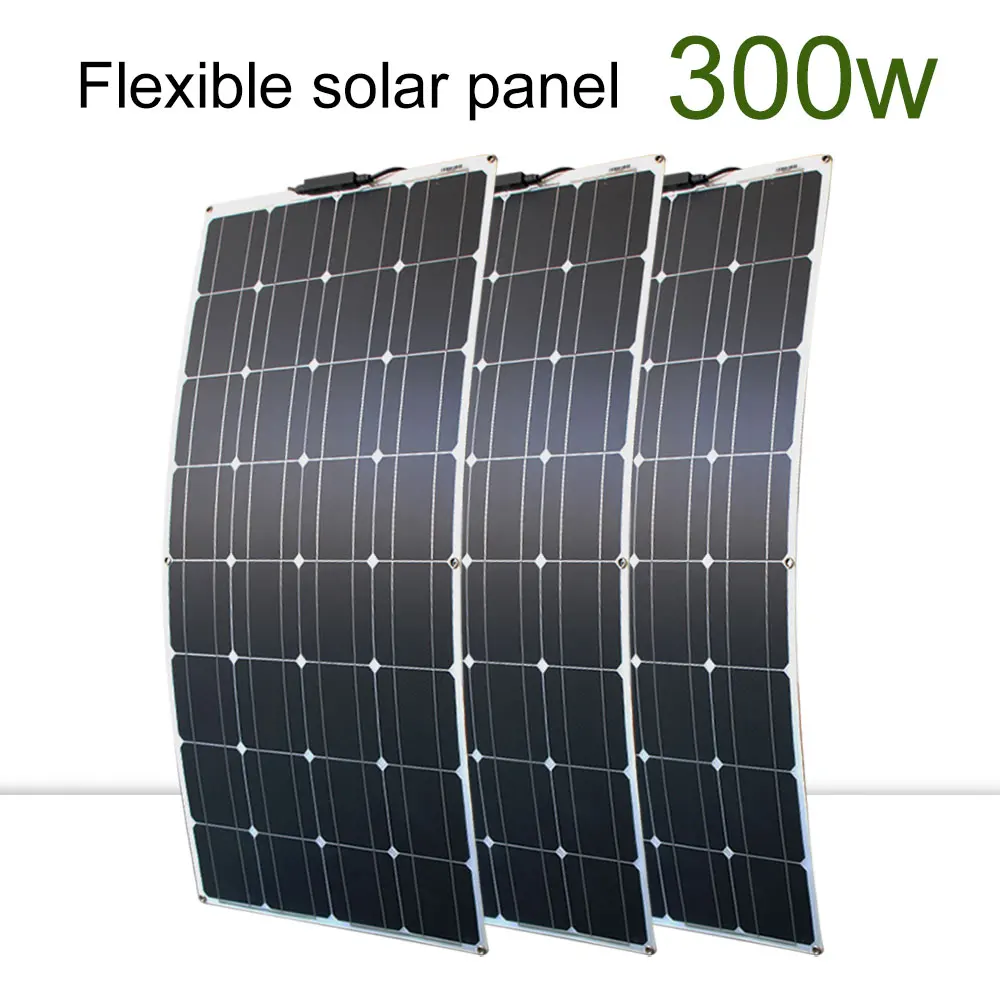

300w solar panel= 3pcs 100w 12v flexible solar panels（solar panel only）

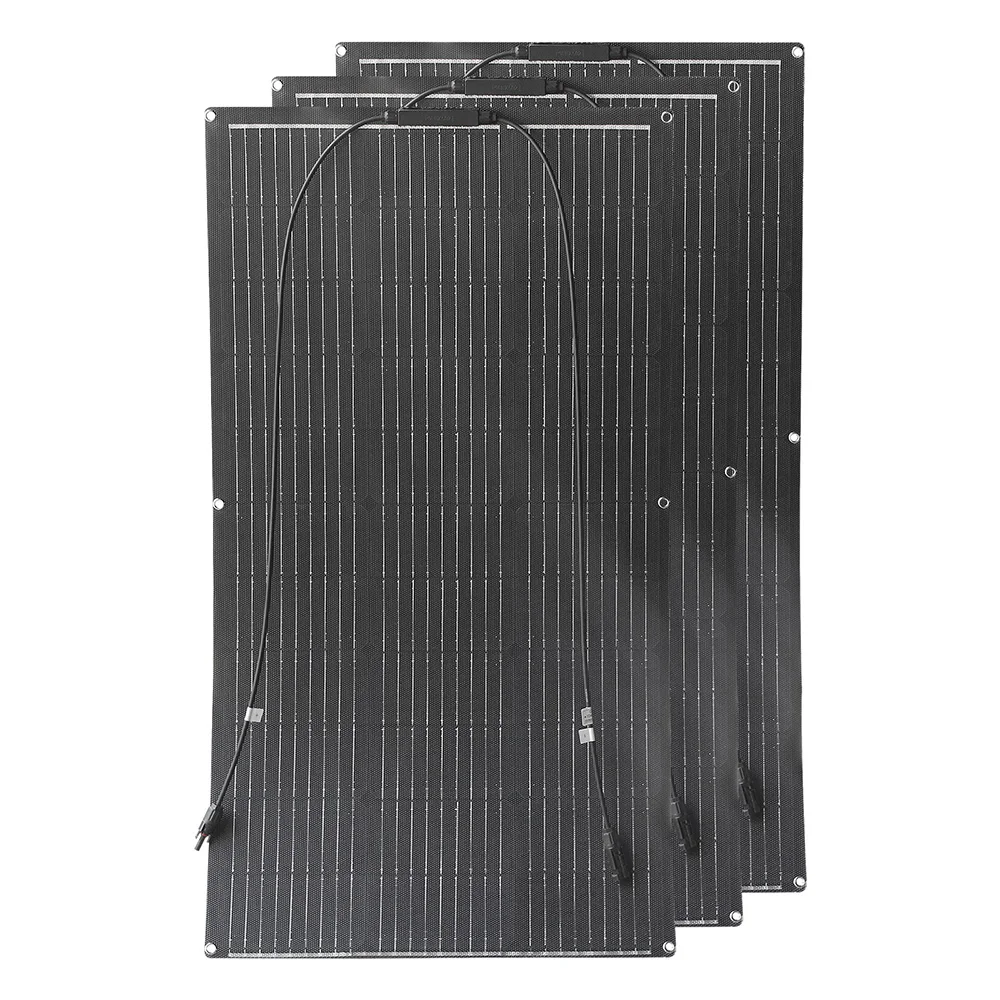

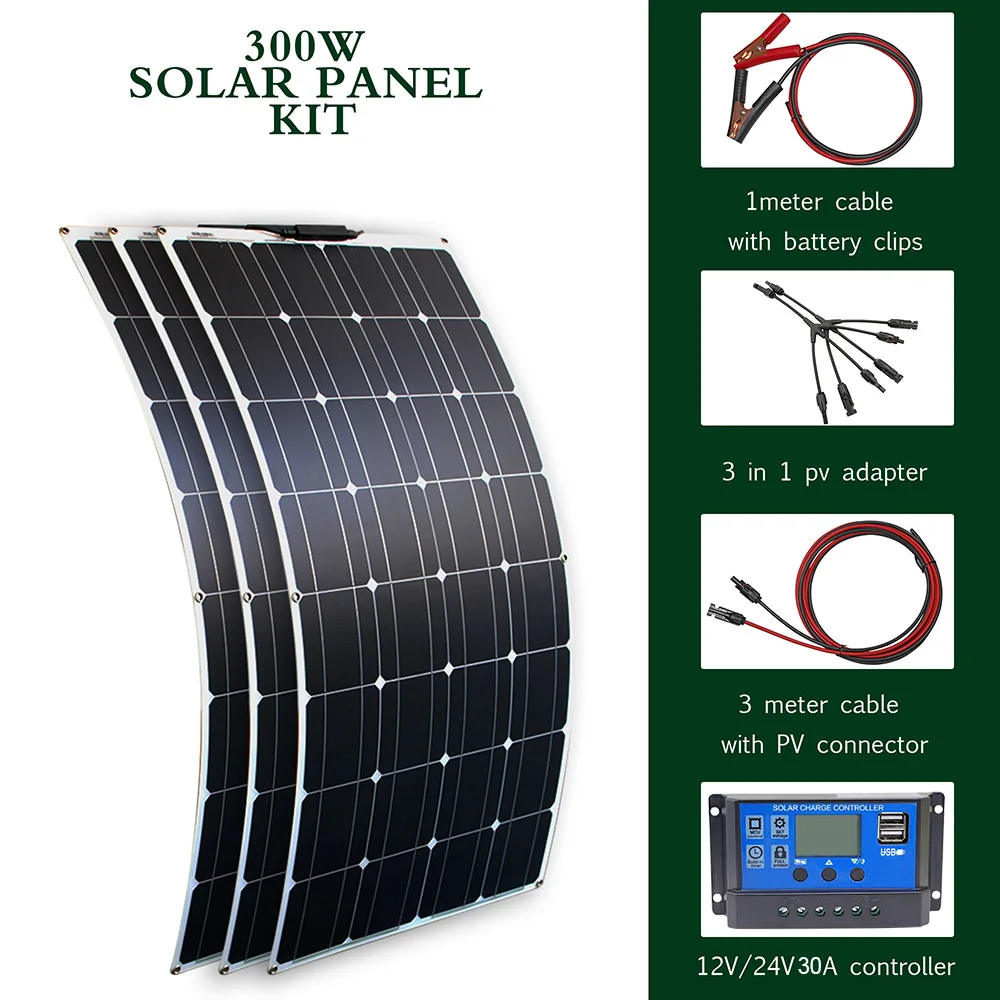

300W solar panel system packing listing
3*100W solar panel
1 *3 in 1 adapter
1*12V/24V 30A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip

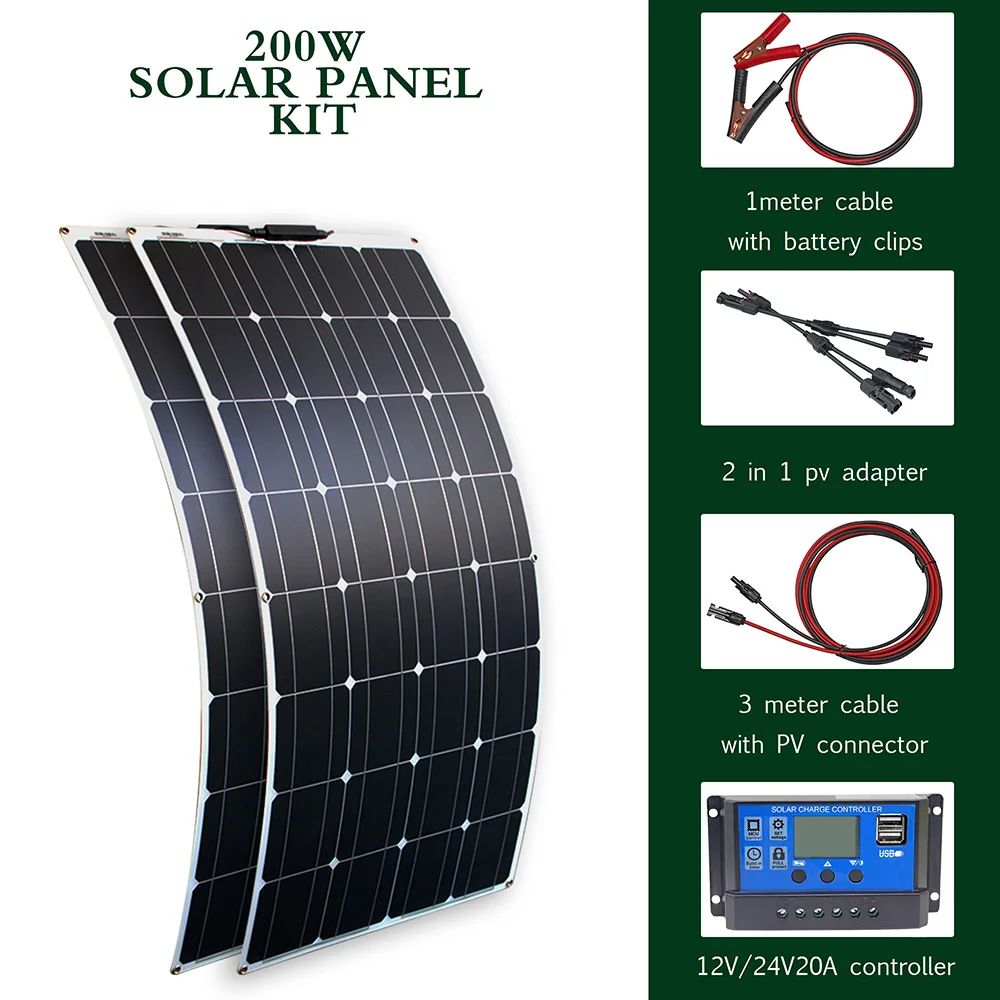

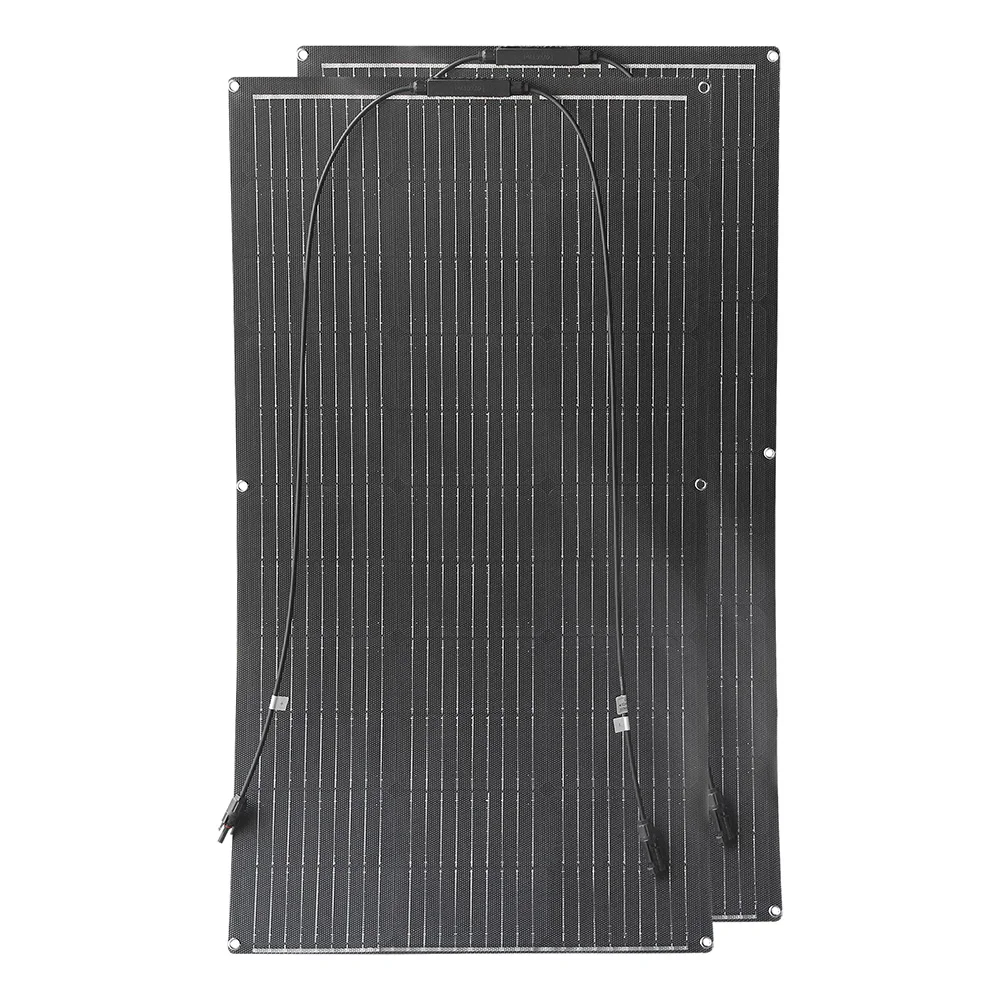

200W solar panel system packing listing
2*100W solar panel
1 *2 in 1 adapter
1*12V/24V 20A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip

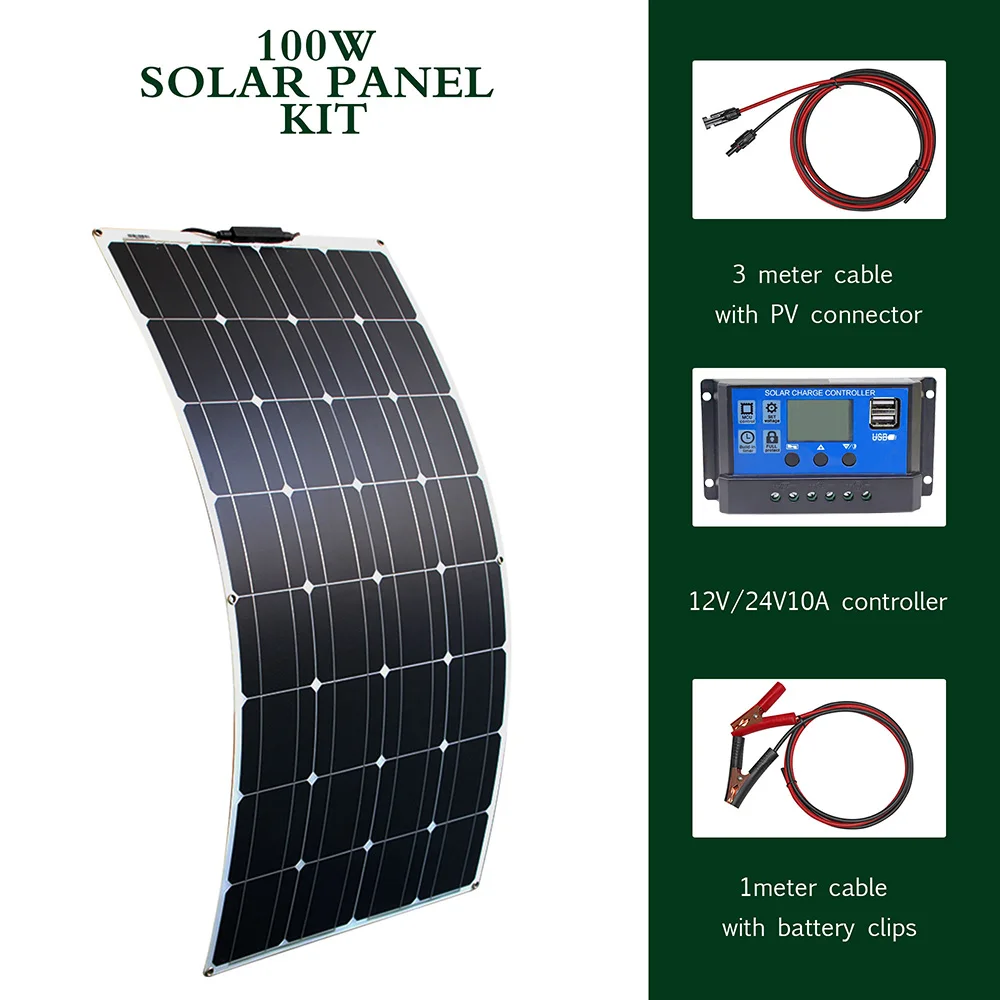

100W solar panel system packing listing
1*100W solar panel
1*12V/24V 10A solar charger controller
1*3 meters cable with PV connector
1*1 meter cable with Alligator clip
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

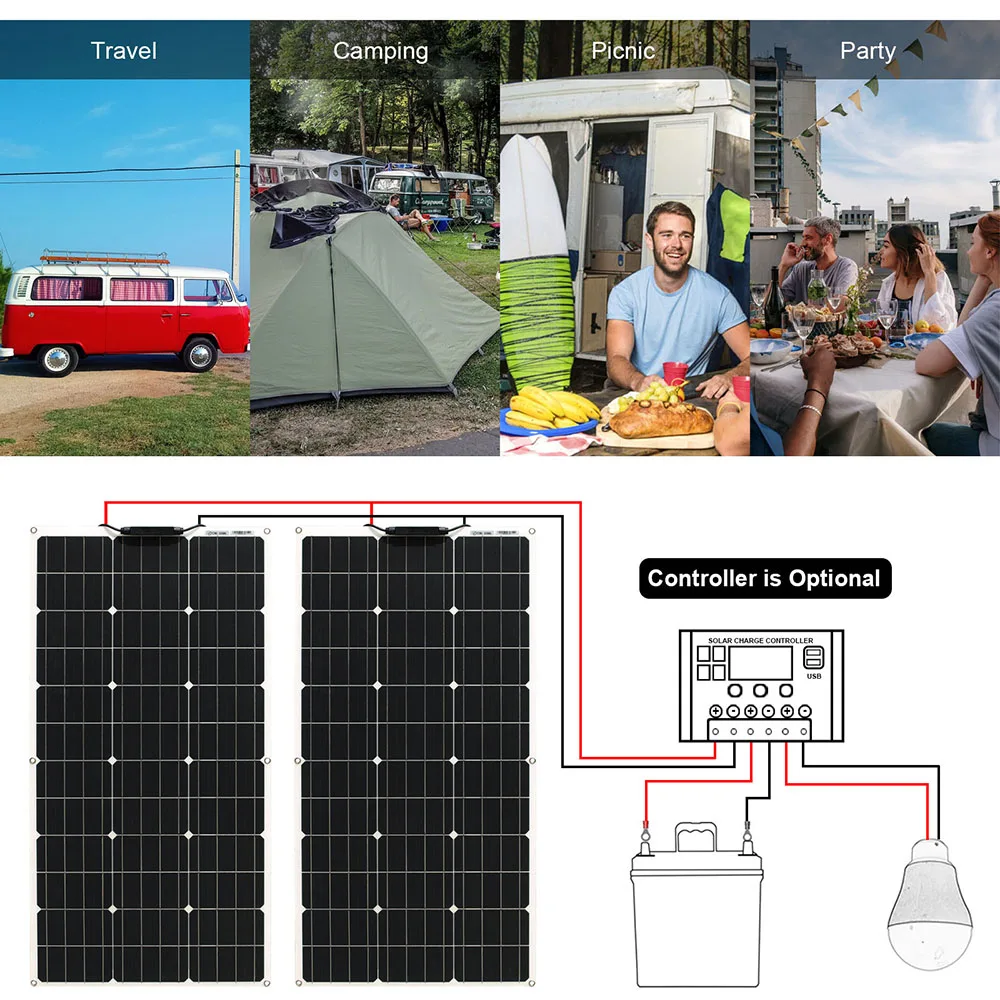

System Connection:
1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.
About the parcel send from China
Sometimes the customs will charge the clearance fees. If you reject the item because of customs clearance, you will have to pay for the shipping cost of the returned item.
When the goods arrive at the destination country, please contact the local logistics service provider for customs clearance and delivery.
| Weight | 55 kg |
|---|---|
| Dimensions | 5 cm |
| Brand Name | dgsunlight |
| Origin | Mainland China |
| Number of Panels | >20 |
| Flexible Solar Panel | Yes |
| Foldable Solar Panel | No |
| Hign-concerned Chemical | None |
| Type | Solar Panel |
| Model Number | RGN33-100 |
| Size | 970*530*2.5mm |
| Material | Monocrystalline Silicon |
| is_customized | Yes |
| Certification | RoHS |
| Max Power | 100w |
| Max Power voltage | 18v |
| Max Power Current | 6.25A |
| Open Circuit Voltage | 19.2V |
| Short Circuit Current | 6.68A |
| Weight | 1.7KG |
14 reviews for solar panel kit and 300w 200w 100w flexible solar panels 12v 24v high efficiency battery charger module
Related products
-
Home Products
VEVOR 1.3L 2L 3L 6L 10L 15L 22L 30L Ultrasonic Cleaner Lave-Dishes Portable Washing Machine Diswasher Ultrasound Home Appliances
$101.99 – $427.99 -
Home Products
Fans, 24″ 8100 CFM High Velocity Drum Fan, 3-Speed Heavy Duty Metal Black Shop Fan for Garage, Factory and Basement, Fans
$179.99 – $276.99 -
Home Products
LED mushroom small table lamp portable USB charging dimmable flower bud lamp bedroom bedside lamp
$49.99 – $69.99
C***R –

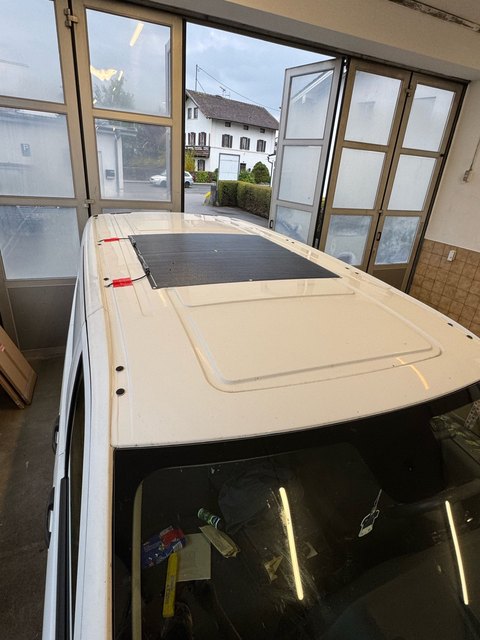

300W solar panel kit, the flexibility of the panels allows you to easily fix or stick them on the vehicle. Very simple to install to improve an already existing installation. fast delivery from 2 countries (Spain and Germany)
